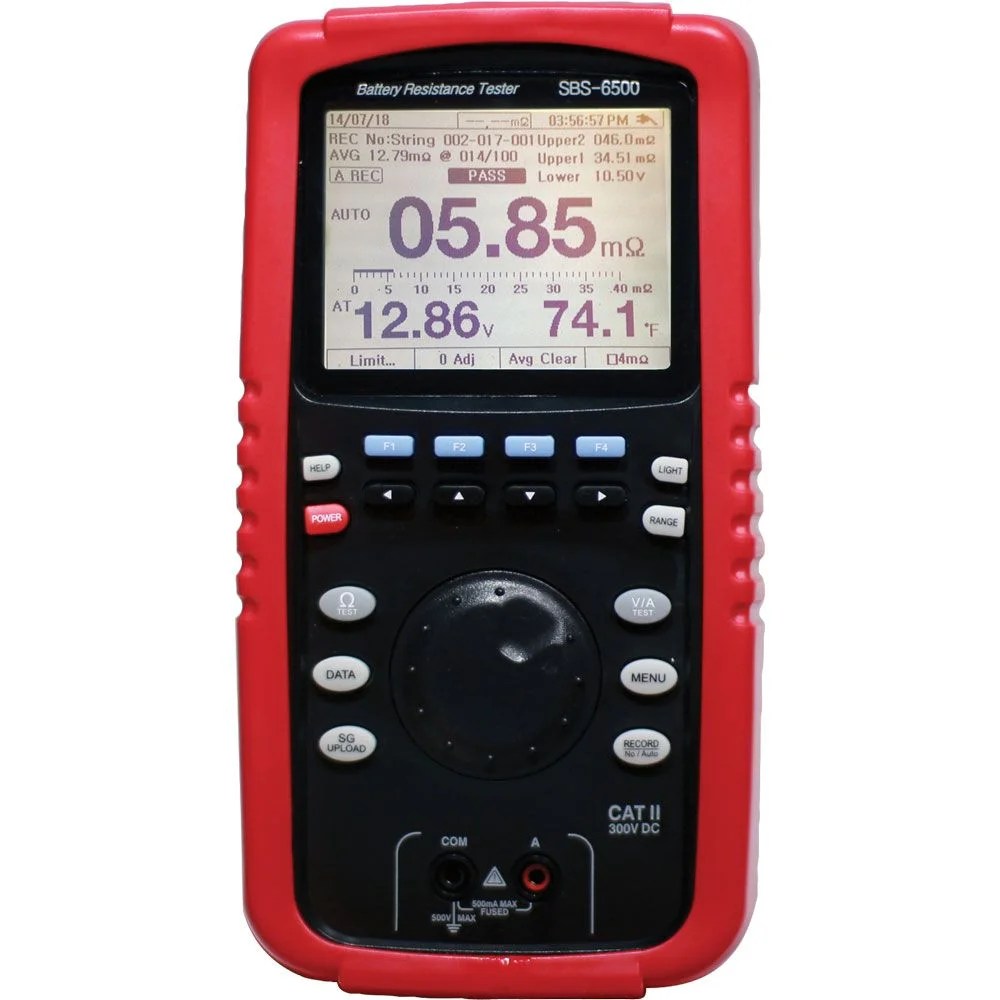

SBS-6500 Storage Battery Systems

Description

SBS-6500 : Digital Battery Impedance Tester

Complete Battery Impedance Tester and Data Logger (Meets IEEE/NERC Standards) multipurpose impedance and voltage tester. Cell and inter-cell and terminal connector readings are taken within seconds using the included pin probes (or optional clamp probes). The SBS-6500 can be programmed with site names, battery details and pass/warning/fail alarm set points for ohmic measurements (pass/fail for voltage) without the high current requirements and float voltage drop necessary for internal resistance testing types. All data is retained in the meter’s internal memory for easy on-site access. With a computer and the included software, generates custom graphical reports for historical trending and comparisons.

Data Storage: 300 battery strings x 250 cells per string x 4 tests per year over a period of 25 years = 7.5 million records

The SBS-6500 replaced the discontinued GL-1000, IBEX-1000 and IBEX-Ultra.

APPLICATIONS
Telecom
Utility
Oil and Gas
Solar/Photovoltaic
UPS
Emergency Lighting
Railways

Functions
Tests and records impedance, voltage, and temperature readings of cells and intercell connectors
On-screen pass/warning/fail indication during testing based on set parameters
Stores and displays all historical data on the handheld unit
Communicates with computer and software via USB port
Generates and displays battery string’s test report and comparison data

In The Box
Main unit
Pin probes
Instruction manual
Quick start guide
Software
USB cable
Unit charging cable
NiMH battery
Adjustable carrying strap
Compact carrying case

Country of Origin : Korea

Manufacture SBS Spec Sheet User Manual Datasheet PDF :

https://www.sbsbattery.com/PDFs/SBS-6500-Battery-Analyzer-Manual.pdf
