MUX8-R2 Multiplexer For PalmSens4 Potentiostat Galvanostat
$3880,00
MUX8-R2 Multiplexer Compatible with PalmSens4 + 4 Chanel sensor cable versatile accessory designed for use with PalmSens potentiostats
Description
MUX8-R2 Multiplexer Compatible with PalmSens4 8 up to 128 cell + Sensor cable with banana connectors.
Package

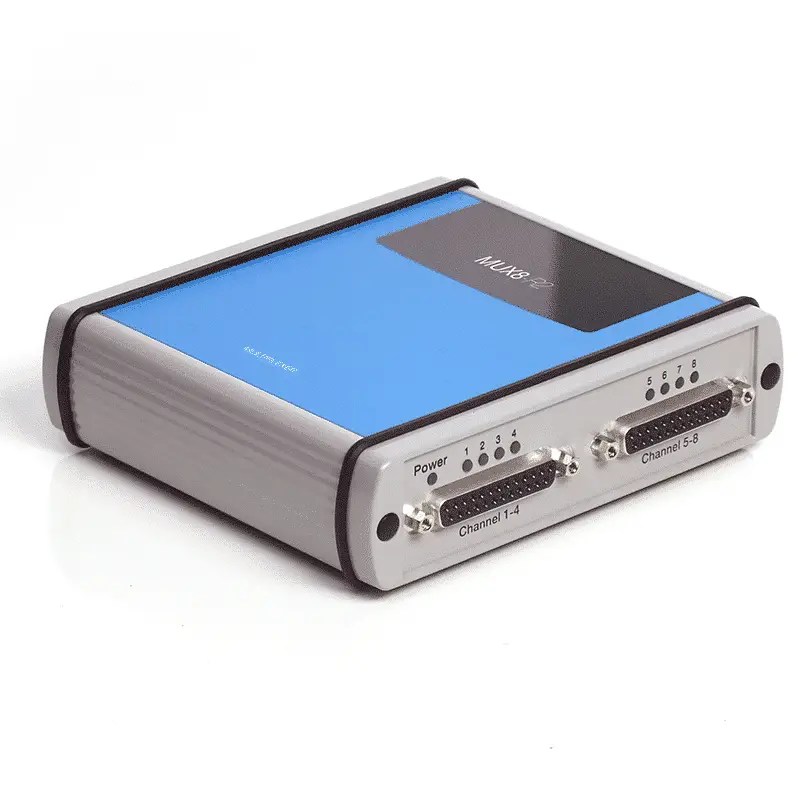

1x MUX8-R2 Multiplexer

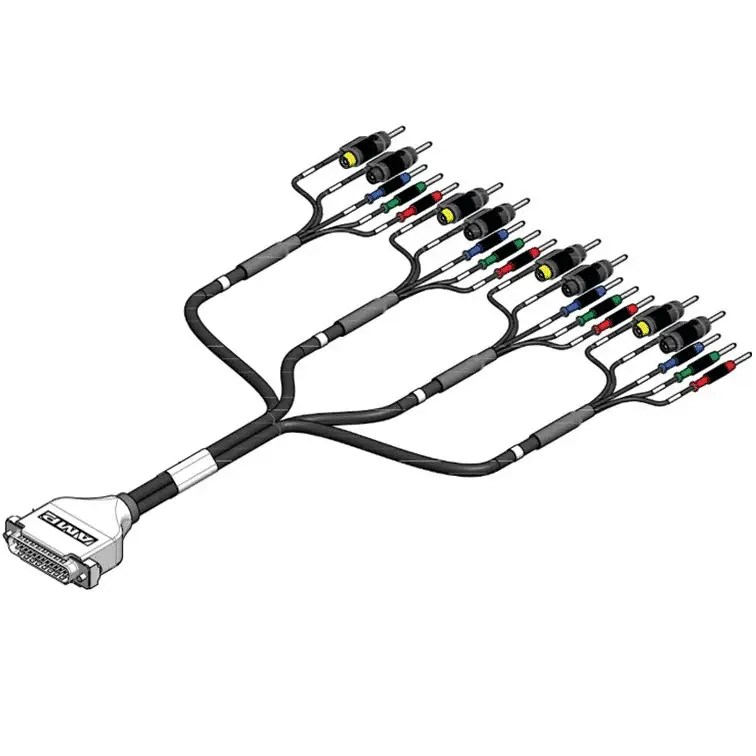

1x Sensor cable with banana connectors 4 Chanel in 1
- Automatically switch between electrochemical cells
- Easy stacking with magnetic feet and top
- 4 different electrode or sensor configurations
- Daisy chain multiplexers, up to 128 channels!
The PalmSens series and the EmStat4X can be used to work with multiple working electrodes or a sensor array by means of a multiplexer. The multiplexer switches between the working electrodes in the range of milliseconds.
- each MUX8-R2 multiplexer enables to work with up to eight 2- or 3- electrode systems.
- daisy chaining multiple MUX8-R2 boards (expansion up to 128 channels)
- all hardware settings are controlled by the software making it unnecessary to flick a physical switch
- LEDs to show which channel is selected
- allows to connect auxiliary input (like temperature sensor)
Specifications :
| System | |
|---|---|
| number of channels | 8 (up to 128 when daisy chained) |
| multiplexer | switches 8 x (WE, S, RE and CE) |
| on resistance for WE | 1.5 ohm typical |
| charge injection on WE | 20 pC typical |
| leakage current | < 55 pA (30 pA typical) at 25 ºC |
| switching time | 2 ms |
|
compliance voltage
|
|
|
|
± 10 V |
| Other | |
|---|---|
| housing | aluminium: 138 mm x 121 mm x 37 mm |
| weight | +/- 500 g |
| temperature range | 0 ºC to + 50 ºC |
| power supply | USB |
The MUX8-R2 has the following connectors :
| Connector | Function |
|---|---|

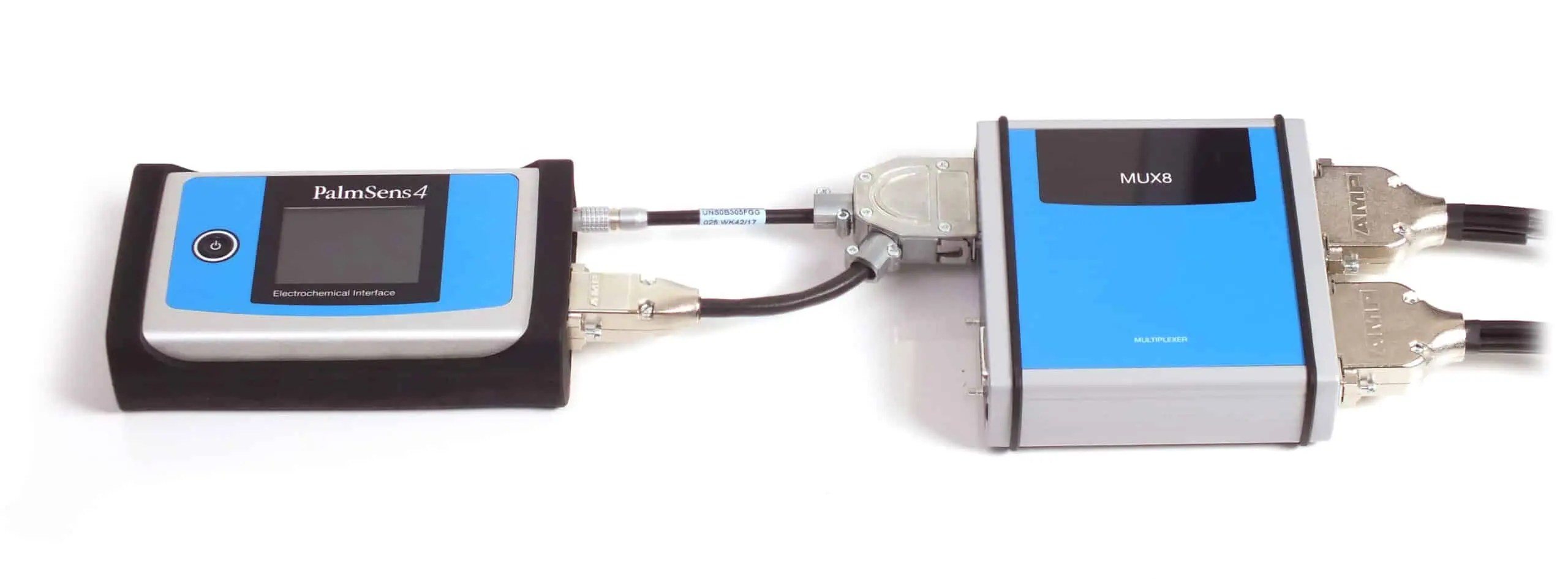

| Input | Y-cable connects to both potentiostat sensor connector and (digital) AUX |
| AUX | Can be used to measure auxiliary input like temperature or pH, and to switch external hardware using two digital control lines that can be set in PSTrace |
| Link | Connects to Input of next multiplexer, for daisy-chaining multiple multiplexers |
| USB-C | Input for extra power when ≥3 multiplexers are daisy-chained |
| Channel 1-4 | Connects to sensor cables 1-4 |
| Channel 5-8 | Connects to sensor cables 5-8 |
