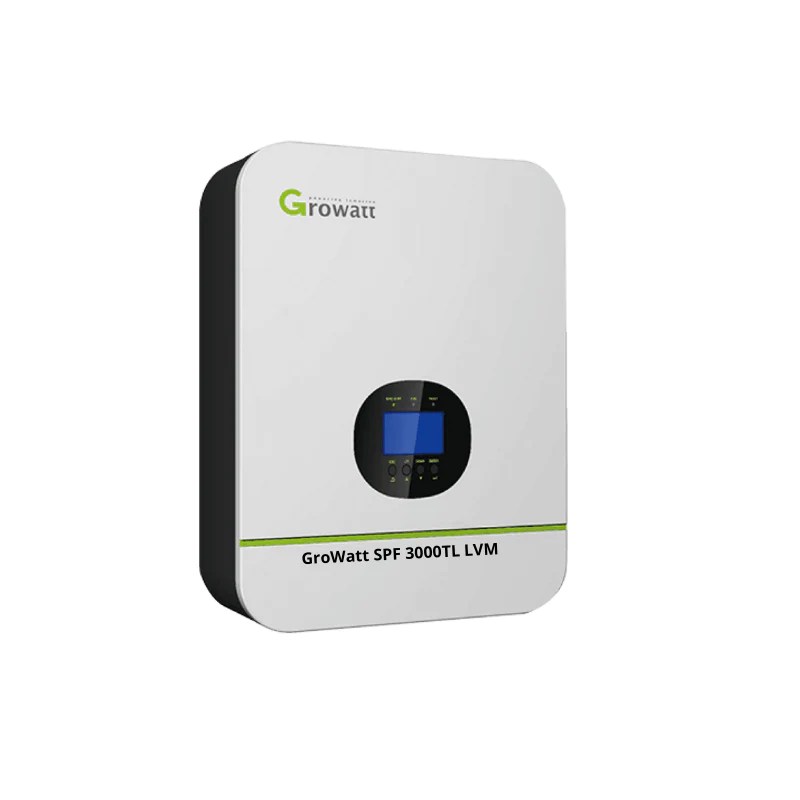

Growatt SPF3000TL LVM-48P Stackable Off-Grid Inverter

Description

Growatt 3000W 48V Hybrid Solar Inverter Output Voltage 230V Pure Sine Wave Built-in 40A MPPT Solar Charger Controller
Pack Included:
SPF3000TL unit x 1
User Manual x 1
Communication line x 1
Software CD x 1
Average line x 1
Parallel communication cable x 1

Growatt SPF3000TL LVM-48P Features:
48V battery system
PV Input 30-115VDC
Pure sine wave output 3KW
Inbuilt MPPT 80A High frequency inverter with small lightweight size
Overload, short circuit and deep discharge protection
Compatible to mains voltage or generator power
Parallel operation up to 6 unit
With CAN/RS485 for BMS communication
WIFI/ GPRS remote monitoring (optional)

Growatt SPF3000TL LVM-48P Technical Data
Model Growatt SPF 3000 TL HVM-48
Battery Voltage 48VDC
Battery Type Lithium/Lead-acid
Rated Power 3000VA/3000W
Parallel Capability No
AC Voltage Regulation (Battery Mode) 230VAC ± 5% @ 50/60Hz
Surge Power 6000VA
Efficiency 93%
Waveform Pure sine wave
Maximum PV Array Power 1800W
MPPT Range @ Operating Voltage 60VDC ~ 115VDC
Number of Independent MPP Trackers/Strings Per MPP Tracker 1/1
Maximum PV Array Open Circuit Voltage 145VDC
Maximum Solar Charge Current 30A
AC Charge Current 15A
AC Input Voltage 230 VAC
Dimensions 315x400x130mm | 8.5kg
Operating Temperature 0°C – 55°C
Storage Temperature -15°C – 60°C

Warranty 2 Years

Download Specs Instalations :

 Growatt SPF 3000TL HVM-48 – Datasheet

 Growatt SPF 3000TL HVM-48 – User Manual

 Growatt SPF 3000TL HVM-48 – Certificate of Conformity CE
